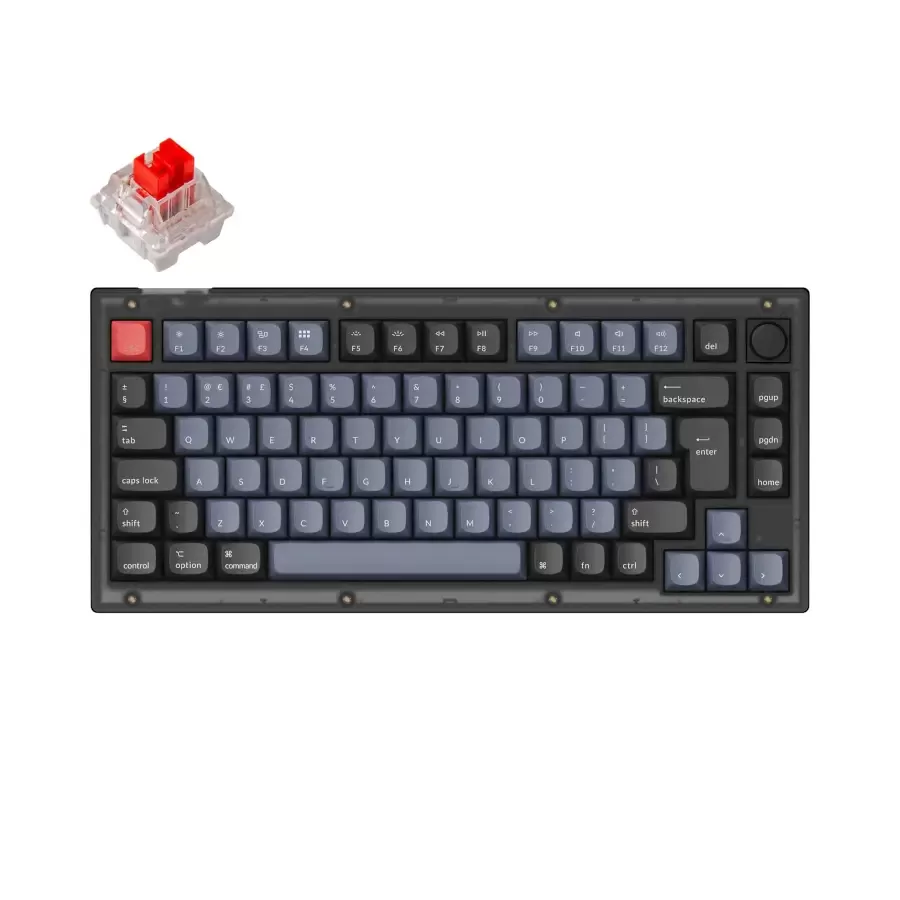

Keychron V1 Mechanical Keyboard

Keychron V1 Knob version is a fully customized 75% layout mechanical keyboard packed with all premium features and unlimited possibilities. V1 is an all-plastic keyboard that allows customizable capabilities for every key switch, keycap, knob, and stabilizer. It’s made for your personalized experience and a more comfortable typing experience.

Color

ANSI Barebone Carbon BlackANSI Barebone Frosted BlackISO Full Kit Frosted Black (Red Switches)

£89.99

Out of Stock

If you would like to be notified when this item is in stock, enter your email here:

Check out our discord here for updates.

Compatible Bundles

Keychron V1 Bundle

Category:

KeychronV1 Board

Details

Switch

Software

Reviews (2)

Keychron V1 Mechanical Keyboard

ANSI & ISO Layouts

ISO layout is widely used in Europe while the ANSI layout is widely used by the rest of the world. If you live in Europe, we recommend you to purchase the "Barebone ISO” version with the corresponding ISO Dye-sub PBT keycap sets together. The "Barebone ISO” is suitable for all ISO keyboard countries like the UK, Germany, France, Italy, Spain, Denmark, Norway, Sweden, Finland, Iceland, etc.

Hot-swappable

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.

South facing RGB LED Lights

The south-facing RGB is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the user installs Cherry-profile alternative keycaps on their keyboard.

PS: Changing the knob with a badge or key requires an additional PCB (sold separately).

Programmable Knob

Designed to enhance your creative workflow, the premium rotary encoder allows you to customize your favorite keys and macros through the innovative VIA software with ease.

You can easily customize the knob to your desired key or macro commands like zooming in/out, adjusting screen brightness, brush size, opacity, volume, selecting video clips or photos, or backlight hue. The download link for the QMK/VIA app for programming is in the softwares tab at the top of this page.

Specs

Width

148.7 mm

Length

328.5 mm

Front Height

17.9 mm (without keycaps)

Back Height

25.8 mm (without keycaps)

Feet Height

2.4 mm

Angle

3.5° / 7.08° / 9,52°

Weight

970 g ± 10 g (Fully Assembled version)

Body Material

ABS Plastic

Plate Material

Steel

Mount Type

Tray Mount Design

Keycap

Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)

MCU

Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)

Polling Rate

1000 Hz

Backlight

South-facing RGB LED

Switch

Gateron Brown G Pro (Fully Assembled version)

Switch Support

Hot-swappable (5 pin & 3 pin)

Stabiliser

Screw-in PCB stabiliser

Cable

Type-C cable + Type-A to Type-C adapter

Learn more about the Keychron V1 such as the V1 shortcuts, assembling the V1, factory reset, and more in the FAQ section.

Compatible keycaps, plates and accessories for the Keychron V1
