Name: Keychron V1 Mechanical Keyboard
Brand: KeyCrox
SKU: KCHRONV1
Price: 69.99 GBP
Availability: OutOfStock
Rating: 5.0 (2 reviews)

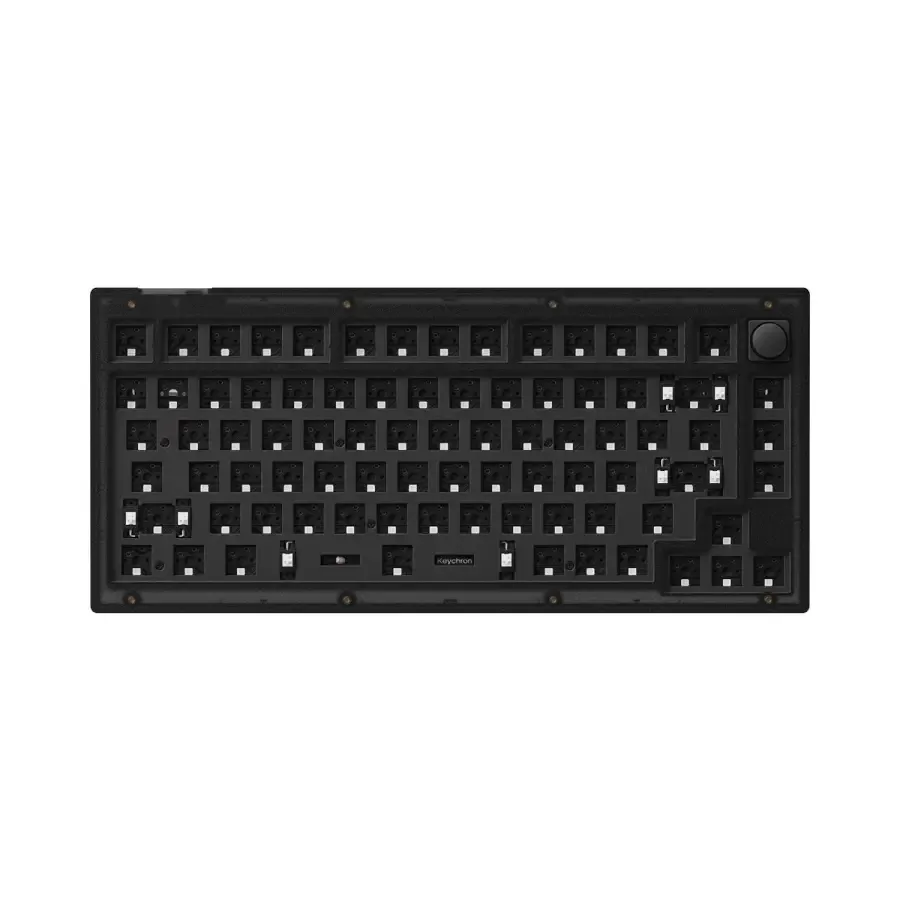

Keychron V1 Mechanical Keyboard

ANSI & ISO Layouts

ISO layout is widely used in Europe while the ANSI layout is widely used by the rest of the world. If you live in Europe, we recommend you to purchase the "Barebone ISO” version with the corresponding ISO Dye-sub PBT keycap sets together. The "Barebone ISO” is suitable for all ISO keyboard countries like the UK, Germany, France, Italy, Spain, Denmark, Norway, Sweden, Finland, Iceland, etc.

Hot-swappable

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.

South facing RGB LED Lights

The south-facing RGB is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the user installs Cherry-profile alternative keycaps on their keyboard.

PS: Changing the knob with a badge or key requires an additional PCB (sold separately).

Programmable Knob

Designed to enhance your creative workflow, the premium rotary encoder allows you to customize your favorite keys and macros through the innovative VIA software with ease.

You can easily customize the knob to your desired key or macro commands like zooming in/out, adjusting screen brightness, brush size, opacity, volume, selecting video clips or photos, or backlight hue. The download link for the QMK/VIA app for programming is in the softwares tab at the top of this page.

Specs

Width

148.7 mm

Length

328.5 mm

Front Height

17.9 mm (without keycaps)

Back Height

25.8 mm (without keycaps)

Feet Height

2.4 mm

Angle

3.5° / 7.08° / 9,52°

Weight

970 g ± 10 g (Fully Assembled version)

Body Material

ABS Plastic

Plate Material

Steel

Mount Type

Tray Mount Design

Keycap

Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)

MCU

Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)

Polling Rate

1000 Hz

Backlight

South-facing RGB LED

Switch

Gateron Brown G Pro (Fully Assembled version)

Switch Support

Hot-swappable (5 pin & 3 pin)

Stabiliser

Screw-in PCB stabiliser

Cable

Type-C cable + Type-A to Type-C adapter

Full User Guide

Learn more about the Keychron V1 such as the V1 shortcuts, assembling the V1, factory reset, and more in the FAQ section.

Keyboard Accessories

Compatible keycaps, plates and accessories for the Keychron V1

These Switches, brought to you by Keychron, comes with different characteristics distinguished by color. They are the new 3pin K Pro variations. This is the red version, relatively light and somewhat quiet.

3 Pins

Linear

Factory Lubed

MX Housing

Actuation	45g
Bottom-Out	--g
Pre Travel	2mm
Total Travel	4mm
Brand	Keychron K Pro
Manufacturer	Keychron

Clear housing made of PC

White housing made of Nylon PA66

Red stem made of POM+TPE Double Shot with a linear profile

45g, 15mm, 1 stage spring plated with steel and has a linear motion

Program with QMK & VIA

With the support for QMK/VIA, you can now intuitively remap your favourite keys and create macros with any key or any operating system (macOS Windows, or Linux) for a fluid workflow.

Download VIADownload for Windows Download for Mac Download for Linux

QMK KeymapsV1 Knob ANSI/US keymap JSON file V1 Knob ISO keymap JSON file
