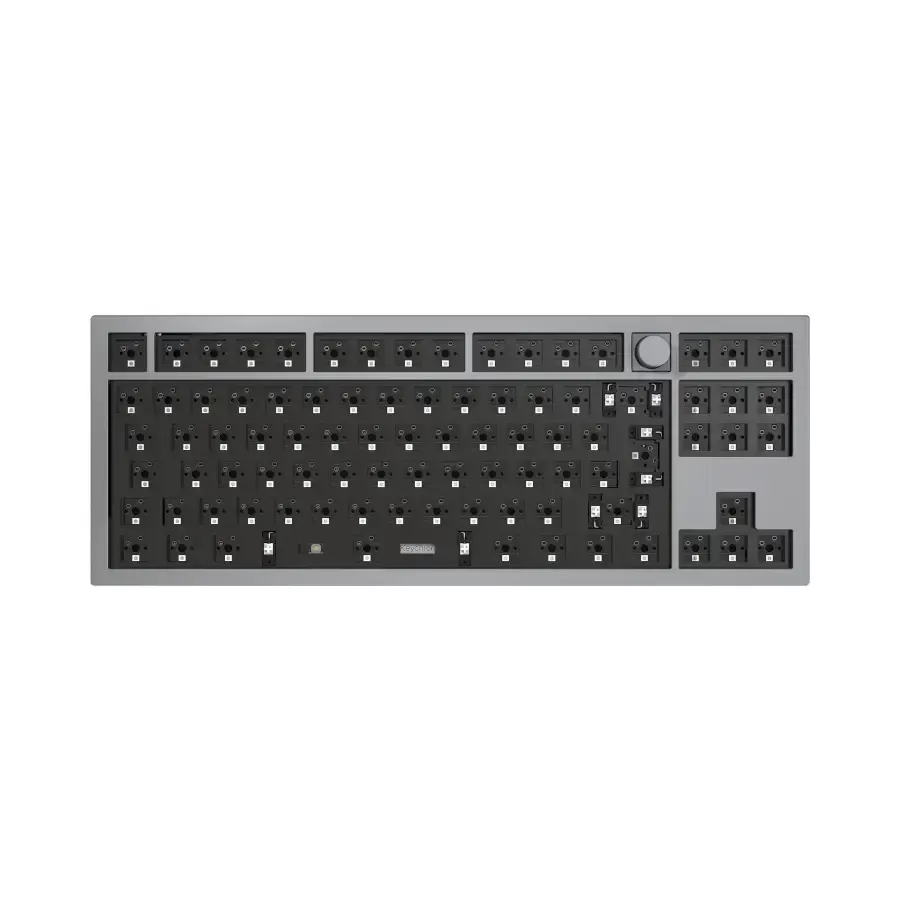

Keychron Q3 Mechanical Keyboard

Keychron Q3 Knob version is a fully customized TKL layout mechanical keyboard packed with all premium features and unlimited possibilities. Q3 is an all-metal keyboard that allows customizable capabilities for every key switch, keycap, knob, and stabilizer. It’s made for your personalized experience and a more comfortable typing experience.

Type

Fully Assembled Ansi BlackFully Assembled ISO BlackKnob Black ANSIKnob Black ISOKnob Grey ANSIKnob Grey ISOKnob Blue ANSIKnob Blue ISO

£159.00

Out of Stock

If you would like to be notified when this item is in stock, enter your email here:

Check out our discord here for updates.

Compatible Bundles

Keychron Q3 Bundle

Category:

KeychronQ3 BoardKeyboard Kits

Details

Software

Reviews (0)

Keychron Q3 Mechanical Keyboard

ANSI & ISO Layouts

ISO layout is widely used in Europe while the ANSI layout is widely used by the rest of the world. If you live in Europe, we recommend you to purchase the "Barebone ISO” version with the corresponding ISO Dye-sub PBT keycap sets together. The "Barebone ISO” is suitable for all ISO keyboard countries like the UK, Germany, France, Italy, Spain, Denmark, Norway, Sweden, Finland, Iceland, etc.

Hot-swappable

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.

South facing RGB LED Lights

The south-facing RGB is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the user installs Cherry-profile alternative keycaps on their keyboard.

PS: Changing the knob with a badge or key requires an additional PCB (sold separately).

Double-Gasket Design

Double Gasket Design is an industry innovative structure. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases. It significantly reduces the resonance between the metals, which in return, reduces the noise of the impacted metals. This Double-Gasket Structure allows the keyboard to maintain the flexibility of the gasket structure and make the overall typing sound better.

Programmable Knob

Designed to enhance your creative workflow, the premium rotary encoder allows you to customize your favorite keys and macros through the innovative VIA software with ease.

You can easily customize the knob to your desired key or macro commands like zooming in/out, adjusting screen brightness, brush size, opacity, volume, selecting video clips or photos, or backlight hue. The download link for the QMK/VIA app for programming is in the softwares tab at the top of this page.

Specs

Width

137 mm

Length

365.1 mm

Front Height

19.7 mm (without keycaps)

Back Height

32.6 mm (without keycaps)

Feet Height

2.4 mm

Angle

5.2°

Weight

2000 g ± 10 g (Fully Assembled version)

Body Material

Full CNC machined aluminum

Plate Material

Steel

Mount Type

Double Gasket Mount

Keycap

Double-shot ABS keycaps, not shine-through (Fully Assembled version)

MCU

Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)

Polling Rate

1000 Hz

Backlight

South-facing RGB LED

Switch

Gateron Brown G Pro (Fully Assembled version)

Switch Support

Hot-swappable (5 pin & 3 pin)

Stabiliser

Screw-in PCB stabiliser

Cable

Type-C cable + Type-A to Type-C adapter

Learn more about the Keychron Q3 such as the Q3 shortcuts, assembling the Q3, factory reset, and more in the FAQ section.
