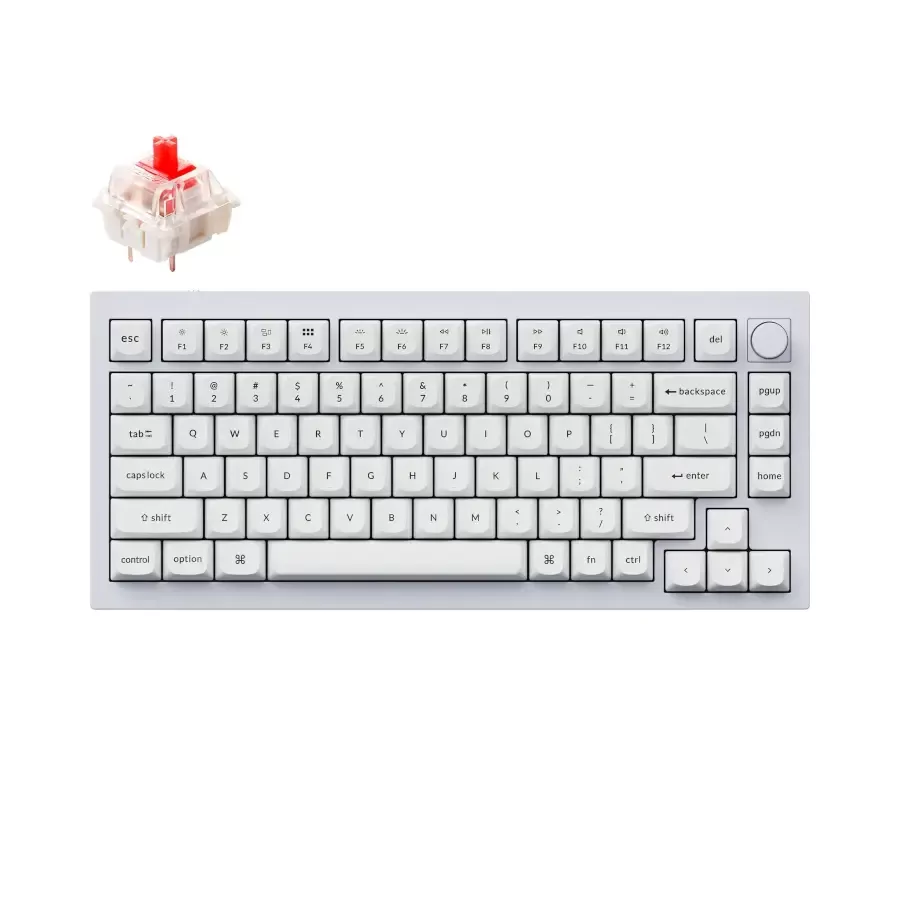

Keychron Q1 Knob version is a fully customized 75% layout mechanical keyboard packed with all premium features and unlimited possibilities. Q1 is an all-metal keyboard that allows customizable capabilities for every key switch, keycap, knob, and stabilizer. It’s made for your personalized experience and a more comfortable typing experience.
Type
Black Full Assembled ANSIBlack Full Assembled ISOBlack Barebone ISOGrey Full Assembled ANSIGrey Barebone ISOBlue Full Assembled ANSIBlue Barebone ISOShell White ANSI Red Switches£189.00
Out of Stock
Check out our discord here for updates.
Compatible Bundles
Keychron Q1 Bundle
Keychron Q1 V2 Mechanical Keyboard Knob Version
ISO layout is widely used in Europe while the ANSI layout is widely used by the rest of the world. If you live in Europe, we recommend you to purchase the "Barebone ISO” version with the corresponding ISO Dye-sub PBT keycap sets together. The "Barebone ISO” is suitable for all ISO keyboard countries like the UK, Germany, France, Italy, Spain, Denmark, Norway, Sweden, Finland, Iceland, etc.
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.
The south-facing RGB is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the user installs Cherry-profile alternative keycaps on their keyboard.
PS: Changing the knob with a badge or key requires an additional PCB (sold separately).
Double Gasket Design is an industry innovative structure. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases. It significantly reduces the resonance between the metals, which in return, reduces the noise of the impacted metals. This Double-Gasket Structure allows the keyboard to maintain the flexibility of the gasket structure and make the overall typing sound better.
Designed to enhance your creative workflow, the premium rotary encoder allows you to customize your favorite keys and macros through the innovative VIA software with ease.
You can easily customize the knob to your desired key or macro commands like zooming in/out, adjusting screen brightness, brush size, opacity, volume, selecting video clips or photos, or backlight hue. The download link for the QMK/VIA app for programming is in the softwares tab at the top of this page.
Width
145 mm
Length
327.5 mm
Front Height
22.6 mm (without keycaps)
Back Height
35.8 mm (without keycaps)
Feet Height
2.4 mm
Angle
5.2°
Weight
1825 g ± 10 g (Fully Assembled version)
Body Material
Full CNC machined aluminum
Plate Material
Steel
Mount Type
Double Gasket Mount
Keycap
Double-shot ABS keycaps, not shine-through (Fully Assembled version)
MCU
Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)
Polling Rate
1000 Hz
Backlight
South-facing RGB LED
Switch
Gateron Red G Pro (Fully Assembled version)
Switch Support
Hot-swappable (5 pin & 3 pin)
Stabiliser
Screw-in PCB stabiliser
Cable
Type-C cable + Type-A to Type-C adapter
Learn more about the Keychron Q1 such as the Q1 shortcuts, assembling the Q1, factory reset, and more in the FAQ section.
Compatible keycaps, plates and accessories for the Keychron Q1
