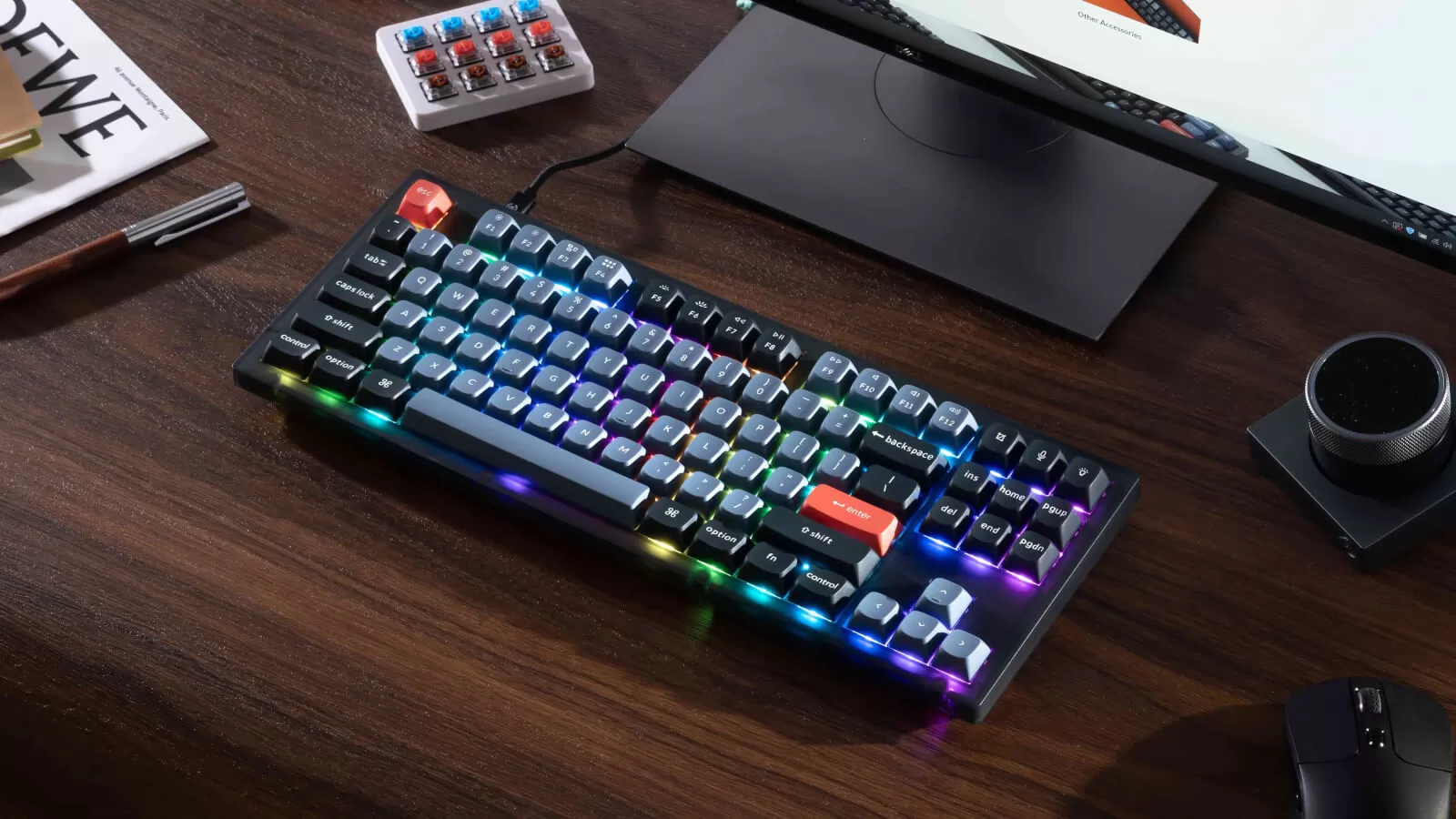

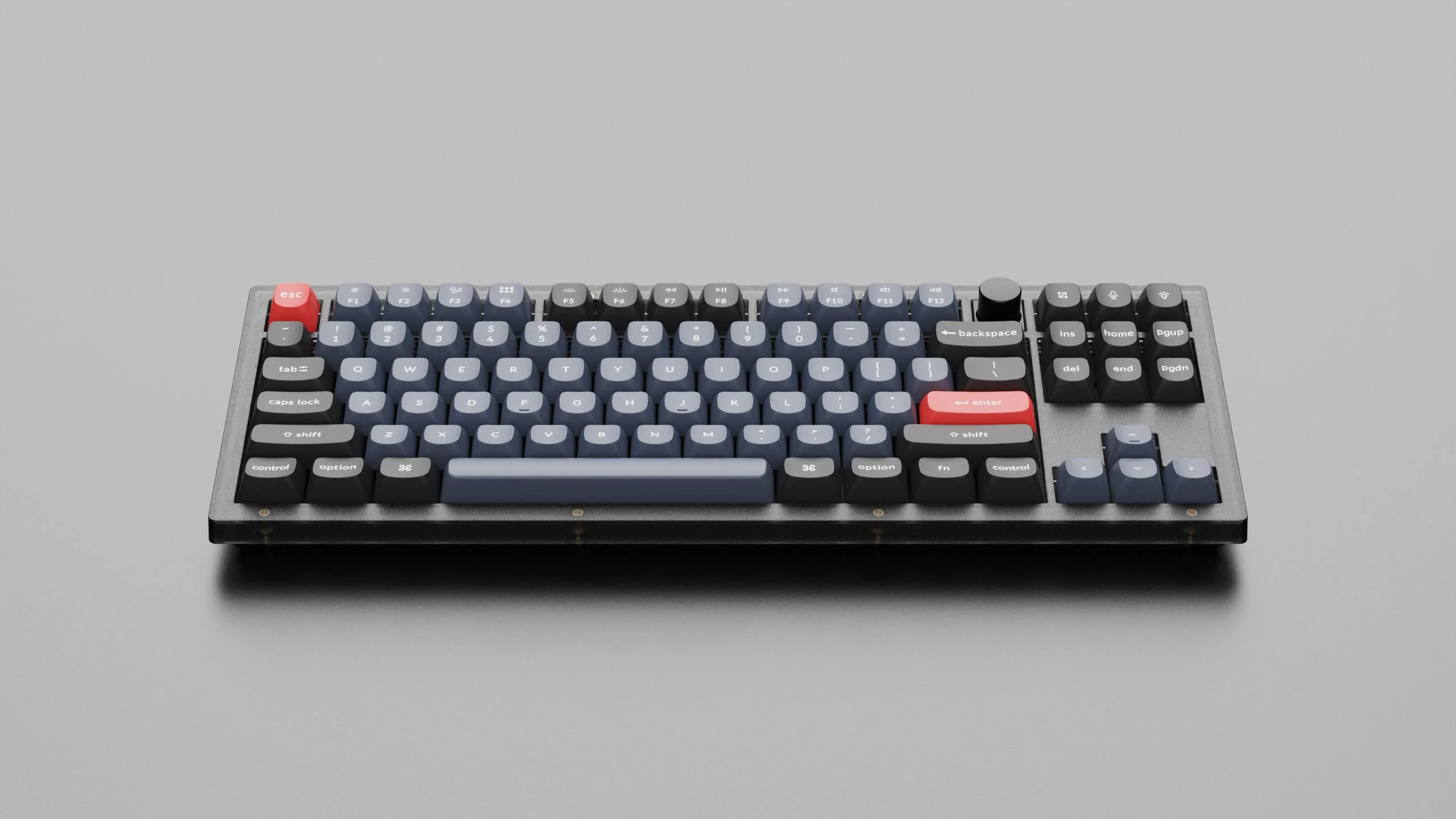

Keychron V3 Knob version is a fully customized TKL layout mechanical keyboard packed with all premium features and unlimited possibilities. V3 is an all-plastic keyboard that allows customizable capabilities for every key switch, keycap, knob, and stabilizer. It’s made for your personalized experience and a more comfortable typing experience.
Color

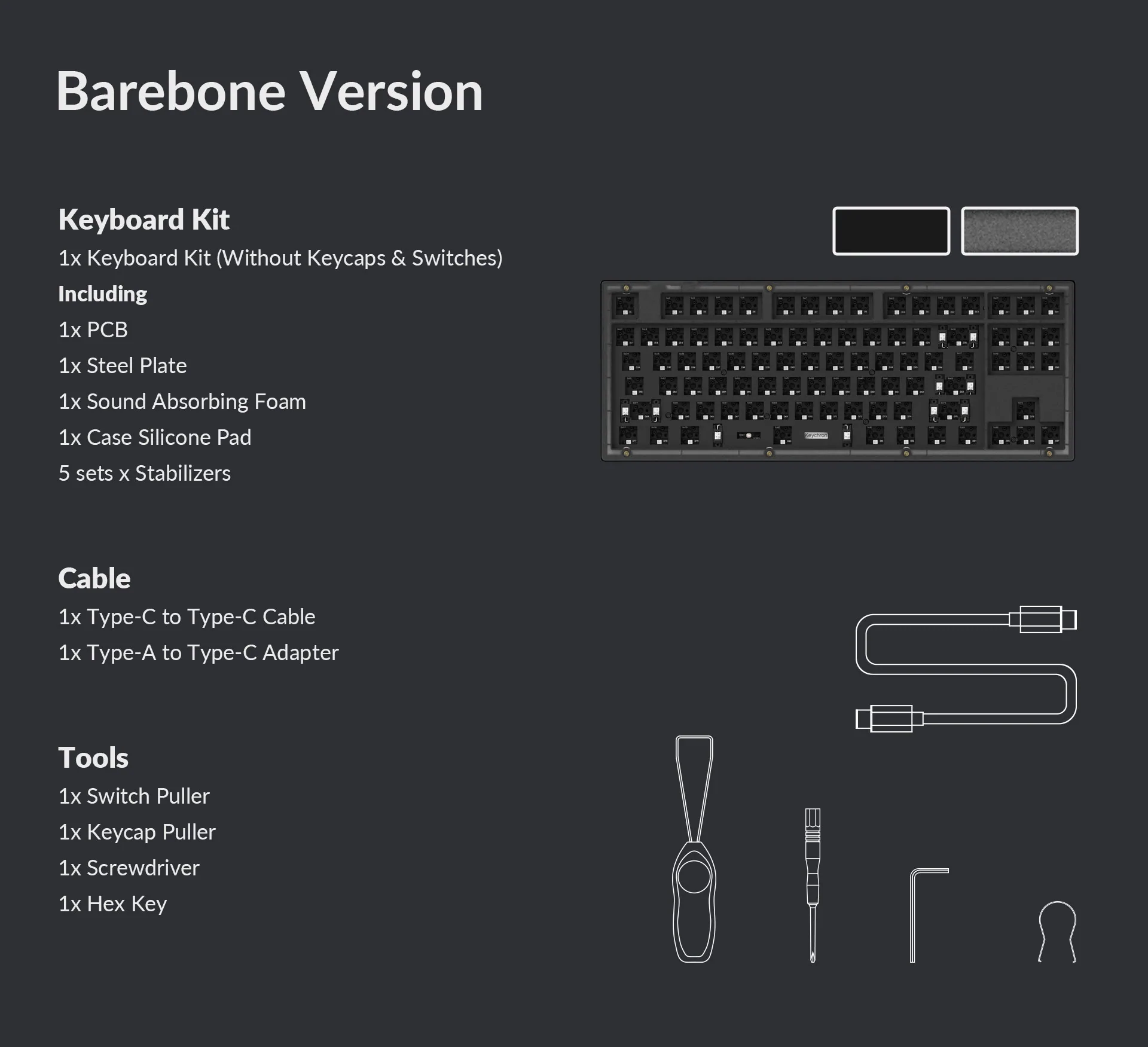

ANSI Barebone Carbon BlackANSI Barebone Frosted BlackANSI Full Kit Carbon Black (Red Switches)£69.99
Out of Stock
Check out our discord here for updates.
Keychron V3 Mechanical Keyboard
ISO layout is widely used in Europe while the ANSI layout is widely used by the rest of the world. If you live in Europe, we recommend you to purchase the "Barebone ISO” version with the corresponding ISO Dye-sub PBT keycap sets together. The "Barebone ISO” is suitable for all ISO keyboard countries like the UK, Germany, France, Italy, Spain, Denmark, Norway, Sweden, Finland, Iceland, etc.

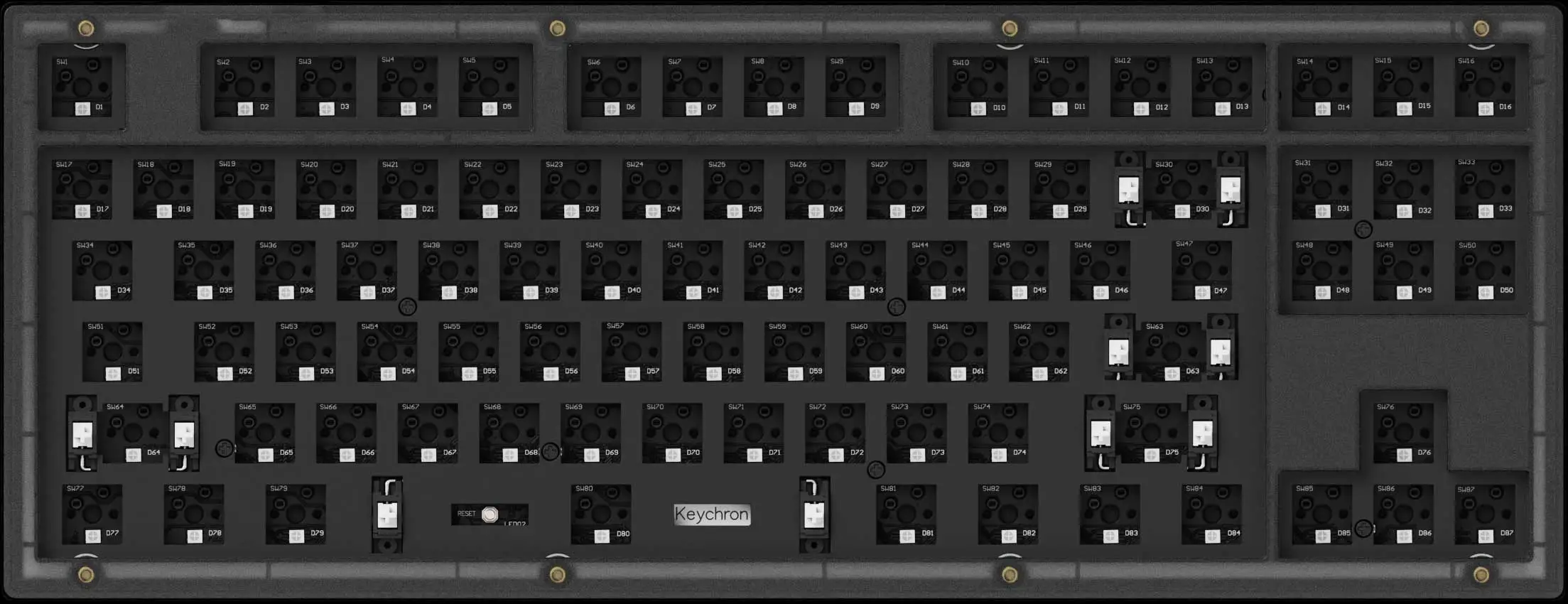

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.
The south-facing RGB is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the user installs Cherry-profile alternative keycaps on their keyboard.
PS: Changing the knob with a badge or key requires an additional PCB (sold separately).

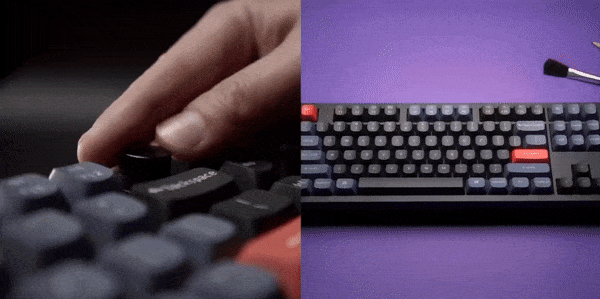

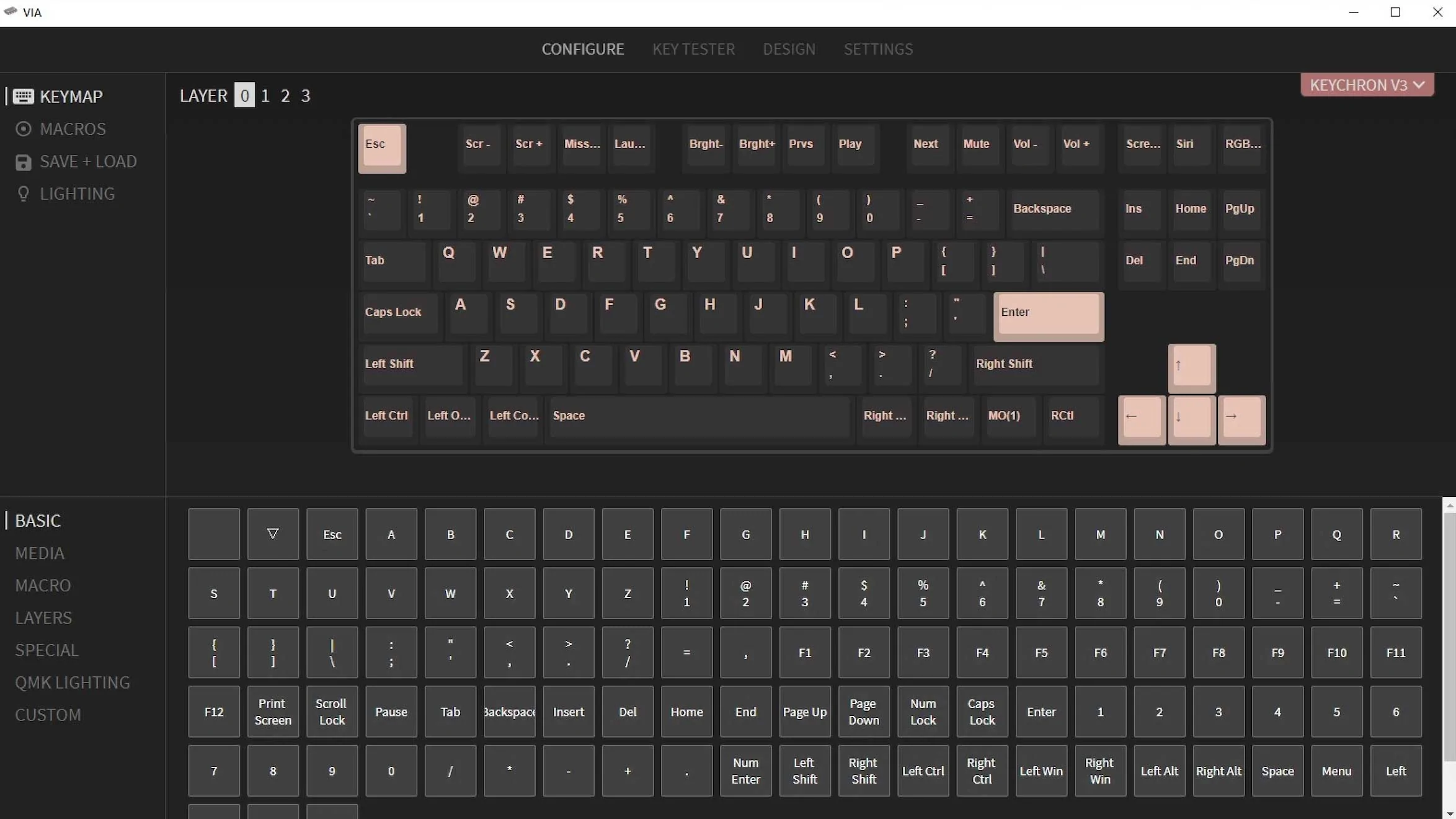

Designed to enhance your creative workflow, the premium rotary encoder allows you to customize your favorite keys and macros through the innovative VIA software with ease.

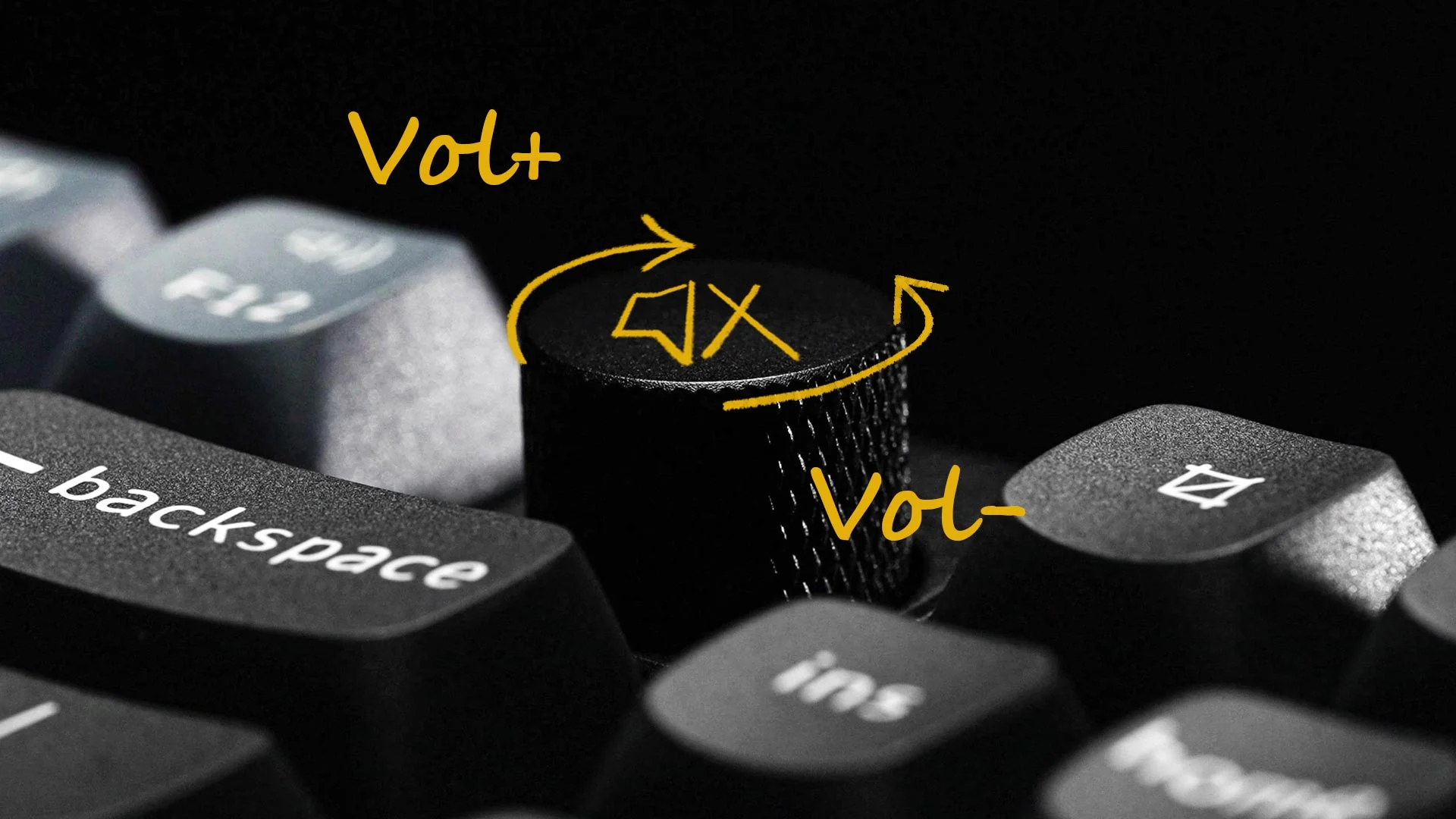

You can easily customize the knob to your desired key or macro commands like zooming in/out, adjusting screen brightness, brush size, opacity, volume, selecting video clips or photos, or backlight hue. The download link for the QMK/VIA app for programming is in the softwares tab at the top of this page.
Width
140.56 mm
Length
366.70 mm
Front Height
19.44 mm (without keycaps)
Back Height
26.83 mm (without keycaps)
Feet Height
2.4 mm
Angle
3.5° / 7.26° / 9.69°
Weight

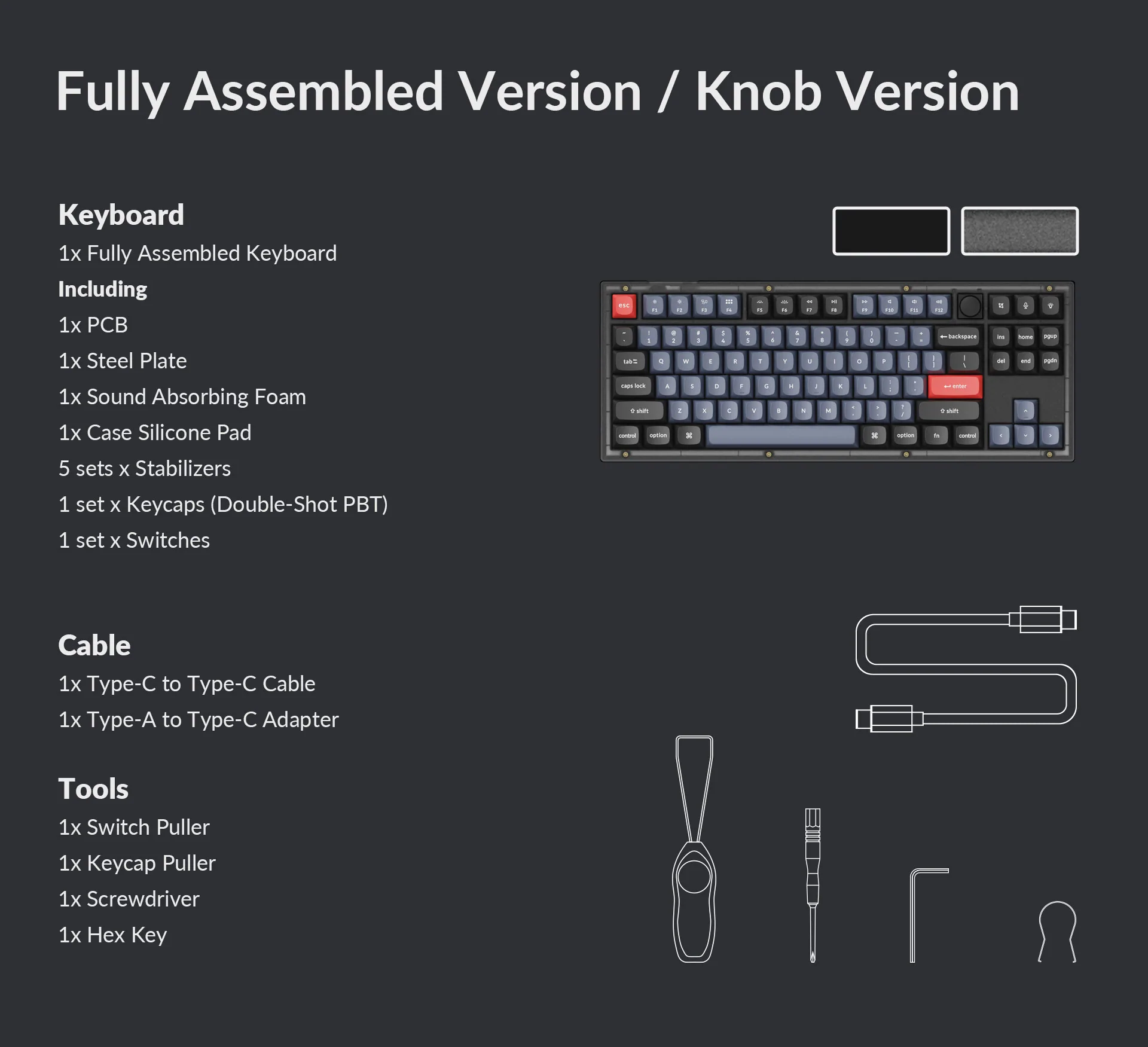

1120 g ± 10 g (Fully Assembled version)

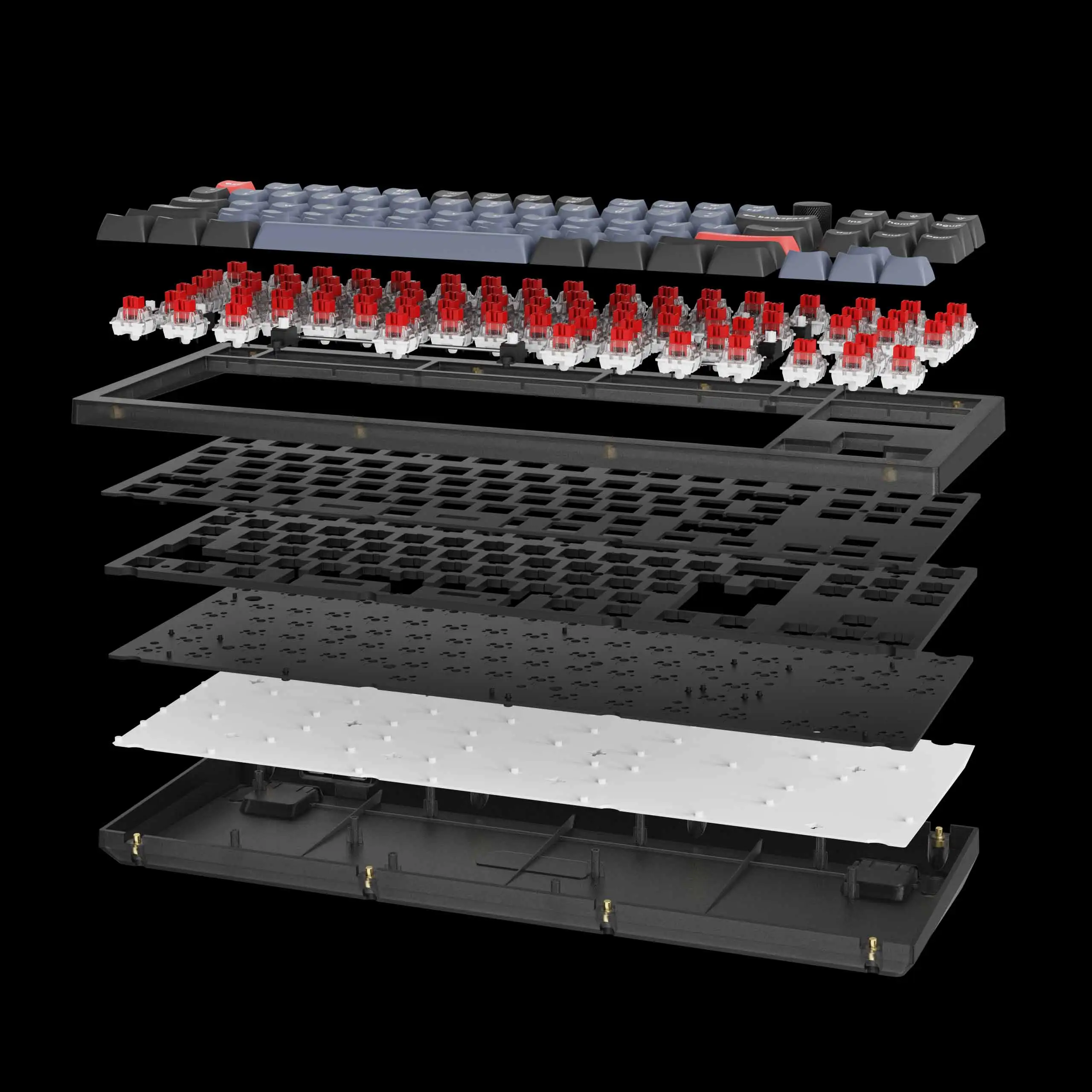

Body Material
ABS Plastic
Plate Material
Steel
Mount Type
Tray Mount Design
Keycap
Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
MCU
Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)
Polling Rate
1000 Hz
Backlight
South-facing RGB LED
Switch
Gateron Red G Pro (Fully Assembled version)
Switch Support
Hot-swappable (5 pin & 3 pin)
Stabiliser
Screw-in PCB stabiliser
Cable
Type-C cable + Type-A to Type-C adapter
Learn more about the Keychron V3 such as the V3 shortcuts, assembling the V3, factory reset, and more in the FAQ section.
Compatible keycaps, plates and accessories for the Keychron V3
